Felipe Almeida | OAPT Conference | May 5, 2023

Computer Code as Another Representation

🔝

A sample scenario:

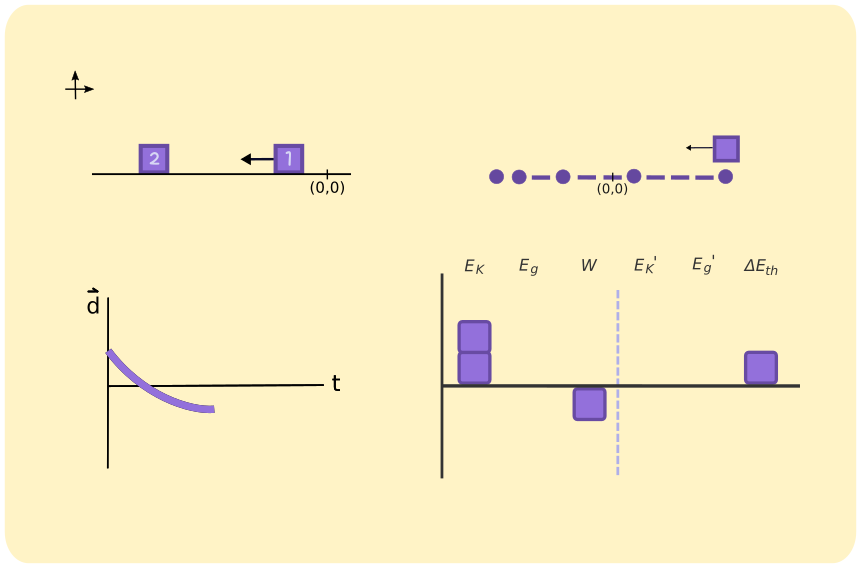

Some useful representations:

What (trimmed) computer code and accompanying simulation could look like as another representation:

let mass = 10, boxSize = 10;
let posX = 240, vel = -25;
let netForce = 6.8;
let acc = netForce/mass;
⋮
  posX += vel;
  vel += acc;

  if (vel >= 0)
    noLoop();

Intro to Coding with p5.js

🔝

p5.js is a free and open source javascript library supported by the procesing foundation that is designed to make creative coding more accessible to artists, educators, beginners (and anyone else). Their convenient online editor can be found here . When using p5.js, a computer program is referred to as a 'sketch' whose visual components appear on a 'canvas'.

What follows is a short tutorial for creating and understanding a sketch that 'moves an object horizontally'.

1. Two Parts to Every Sketch: Setup() and Draw()
2. Setup() and Draw() in Action:
• In the editor below, type the following in setup():
  createCanvas(300, 200);
background(220);
• Now type the following in draw(): circle(mouseX, mouseY, 30);
• Press 'play' to run your sketch and move your mouse over the canvas.
• Modify setup() to the following: createCanvas(300, 200);
• Modify draw() to the following:
  background(220);
circle(mouseX, mouseY, 30);
• Press 'play' to run your sketch and move your mouse over the canvas.
Sample Solution(s)
3. Constant Motion: Changing position every frame creates the illusion of motion.
• In the editor below, type the following before setup(): let posX = -50;
• Type the following in setup(): createCanvas(600, 200);
• Now type the following in draw():
  background(220);
translate(width/2, height/2);
square(posX, 0, 10);
posX += 1;
• Press 'play' to run your sketch.
• Change the 1; in posX += 1; to several other values (and press 'play'), and observe what happens (*try negative values too!)
Sample Solution
4. Constant Acceleration: Changing velocity every frame creates the illusion of acceleration.
• In the editor below, type the following before setup():
  let posX = -200;
let vel = 0;
• Type the following in setup(): createCanvas(600, 200);
• Now type the following in draw():
  background(220);
translate(width/2, height/2);
square(posX, 0, 10);
posX += vel; ¹
  vel += 0.01;
• Press 'play' to run your sketch.
• Change the 0.01; in vel += 1; to several other values, and observe what happens (*try negative values too!)
Sample Solution
5. Creating an End Condition: When to stop caring
• In the editor below, type the following in draw(), after vel += -0.09;:


  if (posX >= 120)
    noLoop();

• Press 'play' to run your sketch.
• Try some other end conditions too (e.g. when the object reaches a certain velocity).
Sample Solution

Big Box of Blueberries Sketch: Walkthrough + Advantages

🔝

Full Sketch Walkthrough

1. Define variables for properties of the box (i.e. mass, size).
2. Define motion variables for the box and their initial values (i.e. position, velocity).
3. Define the net force acting on the box and the box's resultant acceleration (2^nd law of motion).
4. Choose where the origin will appear on the canvas, and create the canvas.
5. (Colour the background, draw the title, move to the origin, draw the ground, draw the origin.)
6. Draw the box.
7. Change the box's position according to its velocity.
8. Change the box's velocity according to its acceleration.
9. Define 'end' conditions and stop the sketch when the conditions are met.

Advantages

• Motion is visible.
• Inconvenient / impractical scenarios are easy to explore.
• Plays nicely with other representations:
• Can be interactive, easy to change variables, etc.

• "Lego Effect": the making of your own simulation (rather than simply using someone else's) increases its value and engagement, as does the ability to change or break it (i.e. exploring the motion/physics through modifying, testing, getting feedback on the code is fast and accessible).
• Having to think about motion, physics, in a new way (see walkthrough above).
• Explicit consideration of initial and final conditions.
• Transferable skills, etc.

Higher Complexity Example - Spring Force

🔝

Highlight: Net force (and acceleration) changes every frame just like position and velocity (but proportional to spring displacement x).

function draw() {
  ⋮
  //motion
  posX += vel;

  //if touching spring, apply spring force
  if(posX < springStartX){
    x = springStartX - posX;
    springForce = k*x;
    acc = springForce/mass;
    vel += acc;
  }
}

Higher Complexity Example - 1D Inelastic Collision

🔝

Highlight: An if statement to determine if two objects collide, then an implementation of the law of conservation of momentum.

function draw() {
  ⋮
  //checking for collision, executing collision
  if (abs(m1.posX - m2.posX) < (m1.size/2 + m2.size/2)) {
    vf = (m1.mass*m1.vel + m2.mass*m2.vel) / (m1.mass + m2.mass);
    m1.vel = vf;
    m2.vel = vf;
  }
}

Higher Complexity Example - Thor's Hammer

🔝

Highlight: A changing net force (proportional to the pendulum's angle from vertical, θ) and a collision check and implementation of the law of conservation of momentum.

function draw() {
  ⋮
  hammer.force = -hammer.mass*g*sin(hammer.theta - PI/2)/hammer.l;
  hammer.acc = hammer.force/hammer.mass;
  hammer.vel += hammer.acc;
  ⋮
  //checking for collision, executing collision
  if (abs(cart.posX - hammer.posX) < (cart.size/2 + hammer.r) && !collided) {
    vf = (cart.mass*cart.vel + hammer.mass*hammer.vel*hammer.l) / (cart.mass + hammer.mass);
    cart.vel = -vf;
    hammer.vel = vf/hammer.l;
    collided = true;
  }

  hammer.theta += hammer.vel;
}

Quantitative Representations

🔝

Quantitative (rather than qualitative) representations are also possible using deltaTime: the amount of time passed since the previous frame (in milliseconds).

Highlights:

• Time variable (in seconds).
• Box variables in real units.
• Actual motion equations.
• Scale to convert metres to pixels for drawing on the canvas.

let t = 0;

let m = 0.25  //mass, in kilograms
let w = 0.1;  //box width, in metres
let d1 = 1.5;  //initial position, in metres
let v1 = -4.5;  //initial velocity, in m/s
let Fnet = 0.9;  //net force, in Newtons
let a = Fnet/m;  //acceleration, in m/s²
  ⋮

function draw() {
  ⋮
  t += deltaTime/1000;
  d2 = d1 + v1*t + 0.5*a*t**2;
  v2 = v1 + a*t;
  ⋮

function drawBox() {
  ⋮
  square(d2*pixelsPerMetre, -w/2*pixelsPerMetre, w*pixelsPerMetre);
}

Sample Student Work: Soccer Ball Rolling Along VPCI Running Track
